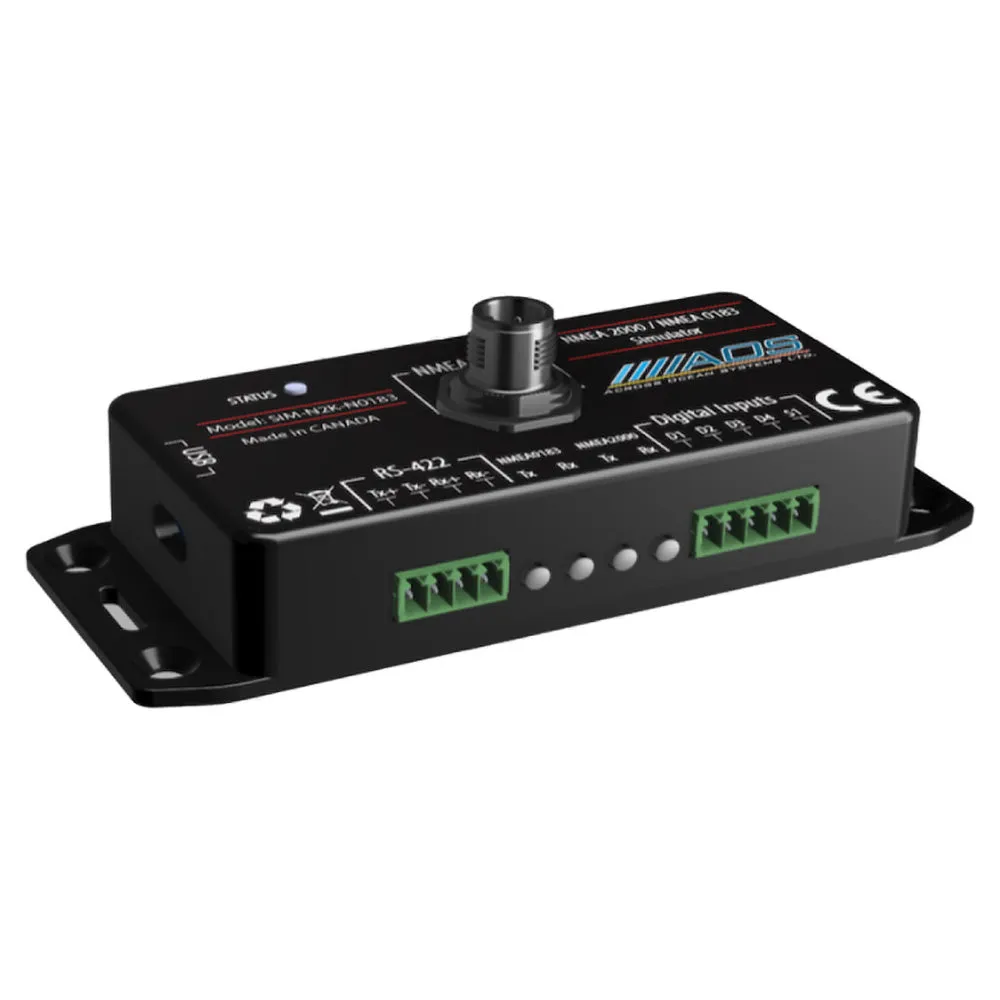

NMEA 2000/NMEA 0183 Simulator/Analyzer

USB simulator for the Marine Industry. Used to simulate NMEA 2000/NMEA 0183 traffic via PGN for analysis/simulation using a Windows-based downloadable software program.

Features:

• Fully configurable


• Perfect for installers and developers

Technical Specifications:

• CE Certification - Marine standard IEC60945


• Comm Method - NMEA 2000®


• Connector - NMEA2000® Micro


• Housing Material -  Plastic


• Inputs/Outputs - 1/2


• NMEA 2000 LEN - 1


• RoHS Compliant - Yes


• Voltage - 9 to 32 VDC


• Waterproof Rating - IP42

In the Box:

• Simulator


• USB Cable 3' (.3M)


• Software (download key)

*Sold as an Individual
