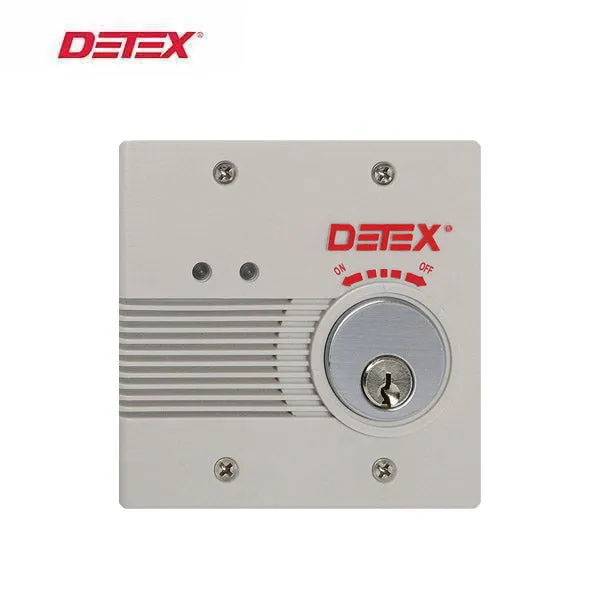

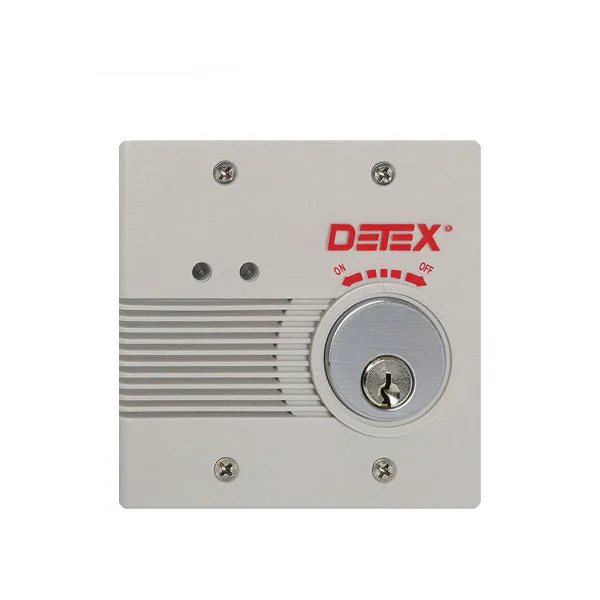

The Detex EAX-2500 Series Exit Alarm is designed for applications requiring a hardwired AC/DC alarm on secure doors. The alarm, with approximately 100dB, will sound when an unauthorized exit occurs. The smaller size of the EAX-2500, which is designed to fit in a standard 4"x 4" outlet box, makes it the choice for quick and easy installations on emergency exit and restricted doors.

Included - Surface Mount AC/DC Powered Alarm, EA-561 Warning Sign, Black Box Included, Flush Magnetic Switch Contacts and 24VAC Transformer.

Shown with cylinder (Mortise cylinder sold separately)

EA-561 Warning sign and back box included.

• Field selectable features allow customer to choose status indicators and auto rearm options
• 100dB piezo horn provides security for restricted doors
• Patented cam assembly automatically adjusts for different size cylinders without spacers
• AC/DC hardwired power with optional 9VDC backup battery
• Silent arming feature is field selectable
• Inside key control uses mortise cylinder with standard Yale cam
• Key required to reset the alarm
• Tamper resistance housing and cover protects electronics
• Relay output for signaling external accessories
