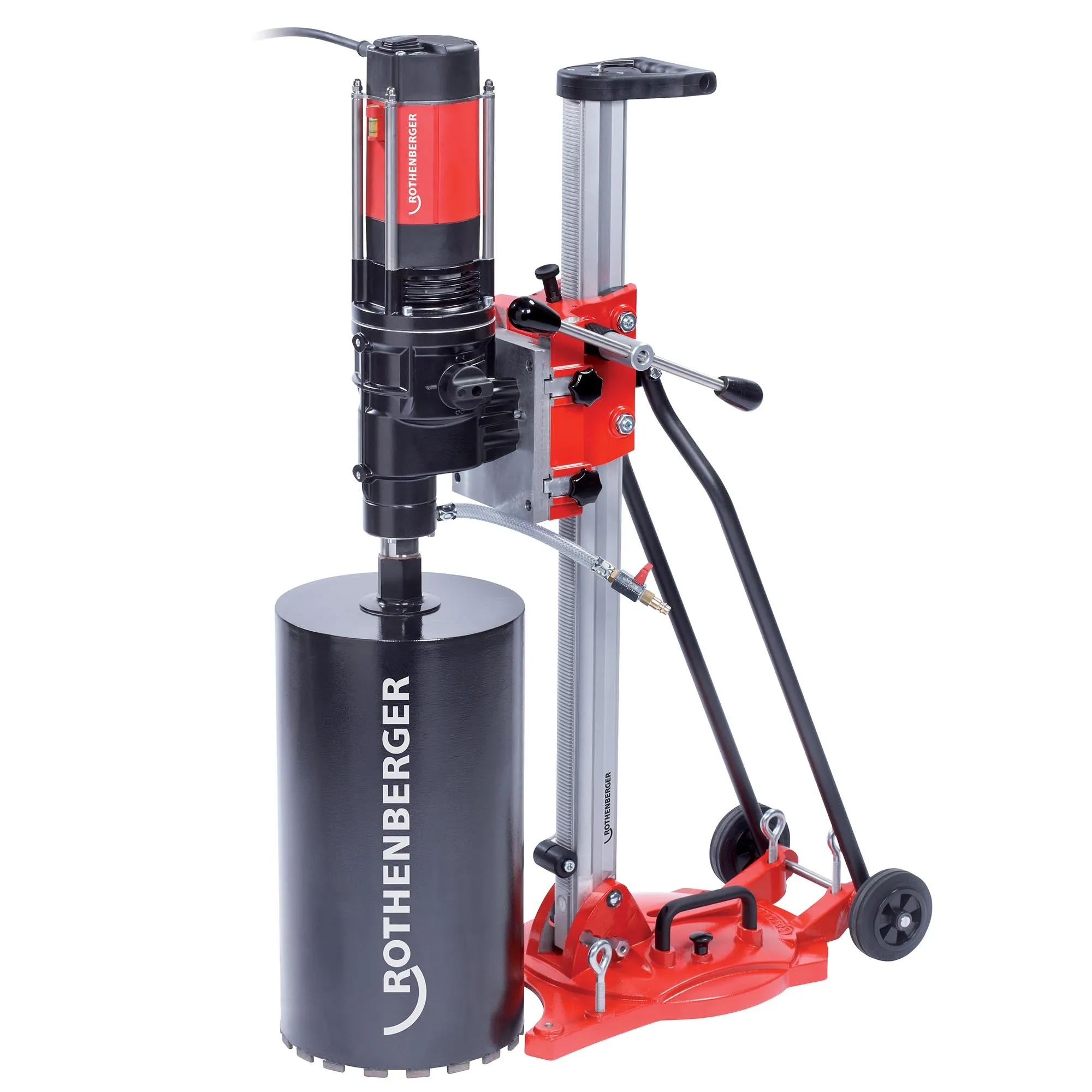

Drilling system Rothenberger RODIACUT 250 / RODIADRILL 500, HVAC installers and chimney constructers can use the electric drill system, consisting of the drill stand RODIACUT 250 and drill motor RODIADRILL 500 for the production of stationary core drillings in concrete and masonry.

• 2 applications with a single device
• Stationary wet drilling up to Ø 250 mm
• Stationary dry drilling up to Ø 250 mm

FEATURES

• One tool for all settings on the drill stand
• Quick release plate for 2 x drill motor mount, either standard (4-hole) or Ø 60 mm clamping collar
• Tool-less motor assembly on the drill stand thanks to dovetail plate and clamp 2 leveling indicators included 4 adjustment screws for fast and precise alignment of the drill stand
• Lightweight aluminum construction allows a one man operation of the drilling system Fully-equipped drill stand including
• Borehole centre indicator, drill depth stop and scale for easier application Integrated rubber wheels for easy transport on the construction site and stairs


TECHNICAL SPECIFICATIONS

• Input 4,000 – 4,000 W
• Output 3,000 – 3,000 W
• Speed 785 U/min
• Power plug type Plug type F (CEE 7/4)
• Protection IP 20
• Noise level 91
• Speed electronics No
• Sound pressure level with unit of measurement 91 dB(A)
• Sound power level (LwA) with unit of measurement 102 dB(A)
• Drilling stroke with unit of measurement 430 mm
• Drilling area concrete with unit of measurement 250 mm
• Drilling area masonry with unit of measurement 250 mm
• Power with unit of measurement 230 V
• Vibration with unit of measurement 2.9 m/s134
