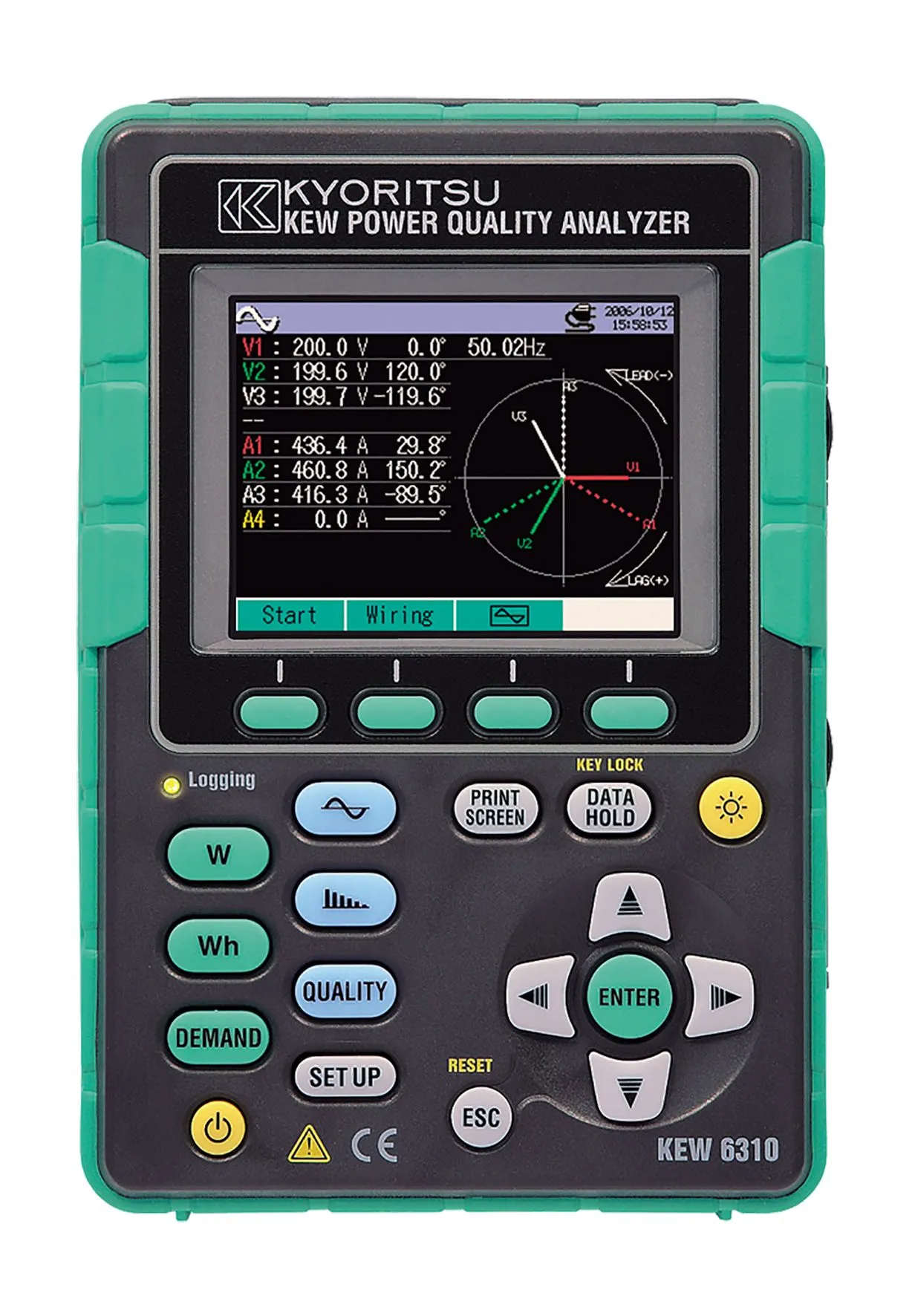

The KEW6310 Power Quality Analyzer handles anything from voltage and current capture through to full harmonics analysis; recording can be initiated manually or automatically by setting the on/off timer. The unit is capable of data capture from basic single-phase – 2-wire circuits through to three-phase – 4-wire circuits.

Measuring Parameters:

Voltage, Current, Frequency, Active power, Reactive power,Apparent power, Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Instantaneous Stop, Transients/Over Voltage, Inrush Current, Unbalance Rate, IEC Flicker [Pst(1 min)*, Pst, Plt]), Phase Advance Condenser (*Pst can be shown in details for 1 minute intervals.)

KEY FEATURES:

• 12 kinds of Power Measurements for Power Control and Applicable to Power Quality Control including Harmonics Analysis.
• One click easy-to-use operation helps complicated setting and processing of large data through the setting / analyzing software provided as accessory.

• Direct communication with PC via USB cable

• Built-in Input / Output Function of external signal enables the signal transmission to alarms.

• 2-way power supply by AC and Battery, and Nickel hydrogen battery usable with rechargeable function.

• Pull / Insert of CF card possible whenever on recording under the function of memory backup device.

• Can monitor insulation at leakage current by using optional leak clamp sensors.

• Built-in Print Screen Function enables to record display screen
  (Records 512 screens by using CF card: 1 screen 40KB).

• Can display Waveform and Vector, and can confirm the wiring connection, too.

• Complies fully with International Safety Standards IEC 61010-1 CAT III 600V.

Rental - KEW6310 Package Includes

• KEW6310 meter
• 3 x 1000A Clamp On Current Transformer
• Voltage Leads Set w/ Alligators
• Memory Card 128MB
• Carry Case
• Certificate of Calibration
• User Manual
